How to install a 34 x 34 stainless steel kick plate on a commercial door
A 34" x 34" stainless steel kick plate protects the lower section of a commercial door, and getting the installation right comes down to a few basics: accurate measurements, a clear mounting surface, and fasteners that hold without damaging the door. Skip any of these and the plate can end up crooked, loose, or in the way of hardware that needs to keep functioning normally. This guide walks through the process from measuring the door to checking the finished result.
Why Doors Need This Kind of Protection
Foot traffic wears on doors in ways that aren't always obvious right away. Someone kicks a door open because their hands are full. A cart bumps against it on the way through. Over months, that contact adds up, and the lower part of the door starts to show it, usually before anywhere else does.

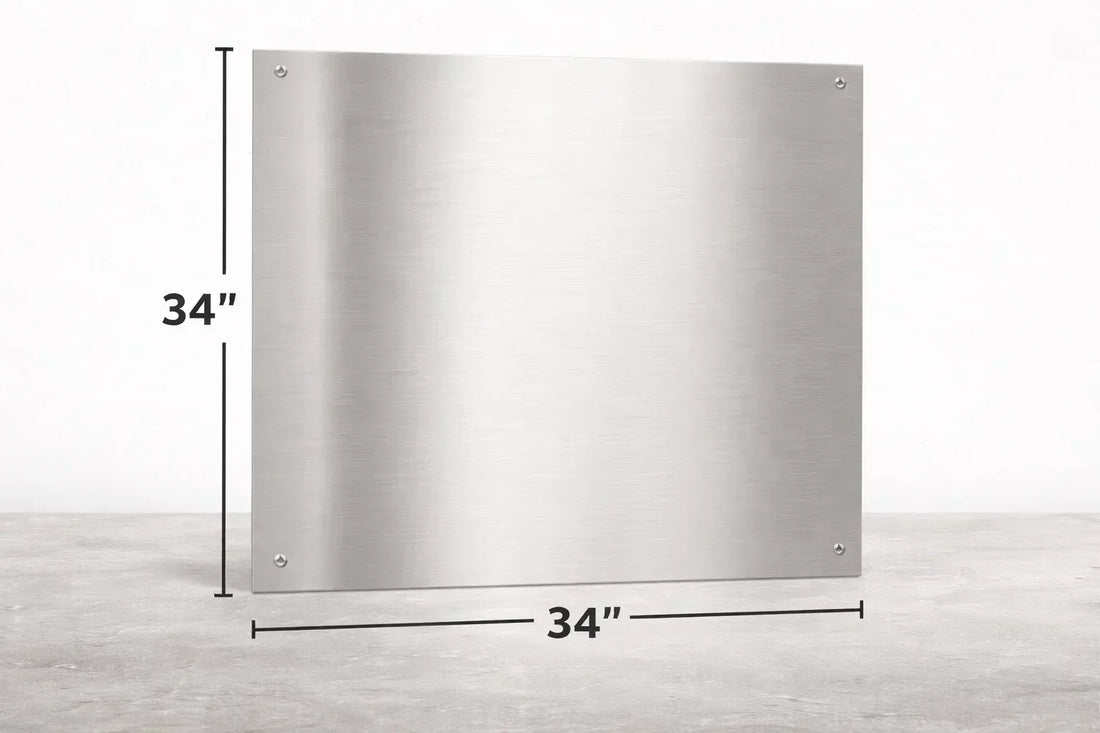

That's the problem a kick plate solves. The 34 x 34 size from Just Kick Plates covers more surface than the smaller options, which matters in entryways where a narrow plate wouldn't reach far enough to actually help. It's made from 16-gauge, 1.2 mm stainless steel, giving it a fairly solid, industrial look that holds up on interior or exterior doors. Hospitals, schools, warehouses, and other commercial or multi-residential buildings are typical places where a plate this size gets used.
Before buying, it's still worth confirming the plate's dimensions against the actual door. A plate that's too large for the available space will run into the frame or threshold, and that's a problem no amount of careful installation can fix.
Shop the 34" x 34" Stainless Steel Kick Plate
Getting Ready
Installation goes faster with the right things laid out ahead of time. A tape measure and level are the basics, along with a pencil for marking and some painter's tape to hold the plate steady while you work. You'll also need a drill with a bit suited to the door material, a screwdriver or driver bit, and mounting hardware. Keep a soft cloth nearby too, mostly for wiping off dust or fingerprints once the plate is up.
One thing to keep in mind: not every door is built the same way, so the correct fastener and drill bit will depend on what the door is made of. Wood doors and steel doors don't take the same approach. If the manufacturer of either the door or the kick plate has published specific installation guidance, that's worth checking before drilling anything.
Installing the Plate Step by Step
Start with the measurements:
Measure the door's width and height, then hold those numbers up against the plate's 34" H x 34" W dimensions. While you're at it, look over the door surface for anything that might get in the way: raised panels, existing hardware, vision panels, vents, locks. The plate needs a clear run of space; otherwise, it'll interfere with something it shouldn't.
Position the plate before marking anything:
Hold it against the door where you plan to install it, then check the top edge with a level. A second person can help here, holding the plate steady while you look at the side-to-side alignment. Painter's tape works too if you're doing this alone. Either way, don't rush this step — getting the position wrong means redoing the marks later.
Mark where the fasteners go
If the plate has pre-drilled holes, those are your guide. If it doesn't, follow the spacing the hardware manufacturer recommends. Measure twice here. It's a small step but an easy one to get wrong.
Drill the pilot holes carefully
Match the drill bit to both the door material and the hardware, then drill at each marked point without forcing it. Fire-rated doors and other specialized types may have restrictions on this kind of modification, so it's worth confirming that beforehand rather than after. Once the holes are drilled, clear away any debris before moving on.
Fasten the plate
Reposition it and start securing it, generally working from the center outward so it stays aligned as you tighten each fastener. Go slowly. Overtightening can mark the stainless steel finish or stress the door surface underneath, and that's not something you can undo easily.
Check everything once it's mounted.
Look at the edges and fasteners to make sure the plate sits flat and secure. Open and close the door several times; this is the real test. If the plate catches on the frame, threshold, or hinges, fix it now rather than leaving it and hoping it settles.
Where Installations Go Wrong
Most installation problems trace back to skipped steps rather than bad materials. Not measuring the full door before starting is a common one. So is drilling without checking what the door is actually made of. Positioning the plate too close to hardware or the frame causes issues later, and uneven or excessive tightening can leave the plate looking off even when it's technically secure. The final door check matters more than people expect; it's often the only way to catch a problem before it becomes a bigger one.
Matching the Size to the Door
The 34 x 34 plate isn't the only option, and it isn't always the right one. The correct size depends on the door's dimensions, how much contact it typically sees, and how much of the surface actually needs covering. For doors that need a different shape of protection, a 34" x 40", 34" x 42", or 34" x 46" stainless steel kick plate might fit better. Comparing the actual door measurements against the product listing before ordering saves a return later.
Just Kick Plates carries a range of stainless steel kick plates for commercial, multi-residential, and institutional buildings, sized around the kind of everyday wear those doors deal with.
When the Larger Size Makes Sense
Doors that see heavy, repeated contact across a wide area tend to be better candidates for the 34 x 34 size. That includes entryways in hospitals, schools, warehouses, offices, and retail spaces, places where people, carts, and equipment pass through often enough that a smaller plate wouldn't hold up as well. For buildings with several doors needing the same treatment, sticking to one size simplifies both the ordering and the installation. Larger orders may also qualify for volume-based discounts, depending on the order value.
Explore Stainless Steel Kick Plates
Final Thoughts
Most of the work in installing a kick plate happens before the drill ever comes out: measuring the door, checking the surface, and marking the mounting points with some care. Shop All for a 34" x 34" stainless steel kick plate from Just Kick Plates adds coverage where doors need it most, without complicating how the door looks or functions day to day.
